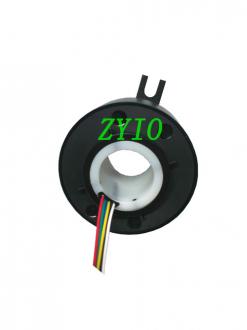

ZYH012
Specification | |
| Circuits | 1-24circuits |
| Operating Speed | 0-500rpm |
| WorkingTemperature | -20℃~ +60℃ |
| Working Humidity | 60%RH or higher |
Electrical: | |
| Voltage Rating | 380VAC/DCor higher |
| Current Rating | 2A/5A/10A/per circuit |
| Dielectric Strength | ≥1000V@50Hz between each circuit |
| Insulation Resistance | 1000MΩ@ 500VDC |
| ElectricalNoise | 1mΩMin |
Mechanical: | |
| Contact Material | Precious metal |
| Lead Wire Size | Teflon®UL |
| Lead Wire Length | Standard 300mm(11.811inch) |
| Housing Material | Aluminum alloy |
| Torque | ≤9.25 g·m (for reference ) |
| Protection | IP54 or higher |
◆ The operational life of the unit depends upon temperature, rotation speed and environment
◆ Operational life ≥80,000,000 runs ref.
Installation Guide
1.Position the slip ring in the desired location and tighten four screws to shaft.
2.Route the wiring and make the necessary connections,fasten the anti-rotation tab.
Attentions
1.Slip ring can not support the weight of equipment which connects with it, roating equipment should be fastened
so that its weight will not fall on the rotor.
2.Slip ring should be used in dry,low dust environment.If used outdoor,shield is necessary.
3.The surface of lead wire should avoid being damaged while equiment rotating,all lead wire can not bear
weight while you put the lead wire in order.
4.No damaging the surface of lead wire while barking its end.
Typical applications
Electrical test equipment | Exhibit / display equipment |
Manufacturing and process control equipment | Laboratory equipment |
Indexing tables, Cable reels | Camera system |
Robotics, rotary sensors, urgent illumination equipment | Aviation, military, marine and medical equipment |
